Можно прокручивать
| Общие характеристики | Общие характеристики | Конструкция | Bolt-on (6-bolt miter neck joint ) | Bolt-on (6-bolt miter neck joint ) | Bolt-on (6-bolt miter neck joint ) | Bolt-on (6-bolt miter neck joint ) | Bolt-on (6-bolt miter neck joint ) | Bolt-on (6-bolt miter neck joint ) | Bolt-on (6-bolt miter neck joint ) | Bolt-on | Bolt-on |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Мензура | 34" (863.6 mm) | 34" (863.6 mm) | 34" (863.6 mm) | 34" (863.6 mm) | 34" (863.6 mm) | 34" (863.6 mm) | 34" (863.6 mm) | 34" (863.6 mm) | 34" (863.6 mm) | ||
| Корпус | Материалы корпуса | Alder / Maple / Alder construction | Alder / Maple / Alder construction | Alder / Maple / Alder construction | Alder / Maple / Alder construction | Alder | Alder | Alder | Alder | Alder | |
| Отделка корпуса | Gloss Polyurethane | Gloss Polyurethane | Matte Translucent Black : Satin Polyurethane Dark Coffee Sunburst : Gloss Polyurethane | Matte Translucent Black : Satin Polyurethane Dark Coffee Sunburst : Gloss Polyurethane | Gloss Polyurethane | Gloss Polyurethane | Gloss Polyurethane | Vintage White, Black, Raspberry Red : Gloss Polyurethane Yellow Natural Satin : Satin Polyurethane | Vintage White, Black, Raspberry Red : Gloss Polyurethane Yellow Natural Satin : Satin Polyurethane | ||
| Гриф | Материалы грифа | Maple/ Mahogany 5pcs | Maple/ Mahogany 5pcs | Maple/ Mahogany 5pcs | Maple/ Mahogany 5pcs | Maple/ Mahogany 5pcs | Maple/ Mahogany 5pcs | Maple/ Mahogany 5pcs | Maple | Maple | |
| Отделка грифа | Satin Polyurethane | Satin Polyurethane | Satin Polyurethane | Satin Polyurethane | Satin Polyurethane | Satin Polyurethane | Satin Polyurethane | Satin Polyurethane | Satin Polyurethane | ||
| Материалы накладки грифа | Rosewood | Rosewood | Rosewood | Rosewood | Rosewood | Maple | Rosewood | Rosewood | Rosewood | ||
| Радиус накладки грифа | 10" (250 mm) | 23 5/8" (600 mm) | 10" (250 mm) | 23 5/8" (600 mm) | 10" (250 mm) | 10" (250 mm) | 23 5/8" (600 mm) | 10" (250 mm) | 23 5/8" (600 mm) | ||
| Толщина ладов | Medium | Medium | Medium | Medium | Medium | Medium | Medium | Medium | Medium | ||
| Количество ладов | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | ||
| Материалы порожка | Graphtech | Graphtech | Graphtech | Graphtech | Graphtech | Graphtech | Graphtech | Urea | Urea | ||
| Ширина грифа (0-й лад / 12-й лад) | 40.0 / 56.3 mm | 43.0 / 63.9 mm | 40.0 / 56.3 mm | 43.0 / 63.9 mm | 40.0 / 56.3 mm | 40.0 / 56.4 mm | 43.0 / 63.9 mm | 40.0 / 56.3 mm | 43.0 / 63.9 mm | ||
| Толщина (1-й лад / 12-й лад) | 21.0 / 23.0 mm | 20.5 / 22.5 mm | 21.0 / 23.0 mm | 20.5 / 22.5 mm | 21.0 / 23.0 mm | 21.0 / 23.0 mm | 20.5 / 22.5 mm | 21.0 / 23.0 mm | 20.5 / 22.5 mm | ||
| Электроника | Нековый звукосниматель | VSP7n : Split Single Coil / Alnico V | VSP7n : Split Single Coil / Alnico V | VSP7n : Split Single Coil / Alnico V | VSP7n : Split Single Coil / Alnico V | VSP5n : Split Single Coil / Alnico V | VSP5n : Split Single Coil / Alnico V | VSP5n : Split Single Coil / Alnico V | VSP3n : Split Single Coil / Ceramic | VSP3n : Split Single Coil / Ceramic | |
| Средний звукосниматель | - | - | - | - | - | - | - | - | - | ||
| Бриджевый звукосниматель | VSC7b : Single Coil / Alnico V | VSC7b : Single Coil / Alnico V | VSC7b : Single Coil / Alnico V | VSC7b : Single Coil / Alnico V | VSC5b ; Single Coil / Alnico V | VSC5b ; Single Coil / Alnico V | VSC5b ; Single Coil / Alnico V | VSC3b : Single Coil / Ceramic | VSC3b : Single Coil / Ceramic | ||
| Регуляторы | Neck PU Volume, Bridge PU Volume, Master Tone | Neck PU Volume, Bridge PU Volume, Master Tone | Master Volume, Pickup Balancer, 3-BAND EQ(Bass, Middle, Treble), Active/Passive Switch. | Master Volume, Pickup Balancer, 3-BAND EQ(Bass, Middle, Treble), Active/Passive Switch. | Neck PU Volume, Bridge PU Volume, Master Tone | Neck PU Volume, Bridge PU Volume, Master Tone | Neck PU Volume, Bridge PU Volume, Master Tone | Neck PU Volume, Bridge PU Volume, Master Tone | Neck PU Volume, Bridge PU Volume, Master Tone | ||
| Переключатель звукоснимателей | - | - | - | - | - | - | - | - | - | ||
| Железо (Hardware) | Бридж | Vintage Plus : Convertible stringing, Brass Saddle, Steel Plate | Vintage Plus : Convertible stringing, Brass Saddle, Steel Plate | Vintage Plus : Convertible stringing, Brass Saddle, Steel Plate | Vintage Plus : Convertible stringing, Brass Saddle, Steel Plate | Vintage Plus Light : Convertible stringing, Steel saddle | Vintage Plus Light : Convertible stringing, Steel saddle | Vintage Plus Light : Convertible stringing, Steel saddle | Vintage Style | Vintage Style | |
| Расстояние между струнами | 19 mm | 18 mm | 19 mm | 18 mm | 19 mm | 19 mm | 18 mm | 19 mm | 18 mm | ||
| Струнодержатель | - | - | - | - | - | - | - | - | - | ||
| Колки | Lightweight Open Gear | Lightweight Open Gear | Lightweight Open Gear | Lightweight Open Gear | Lightweight Open Gear | Lightweight Open Gear | Lightweight Open Gear | Lightweight Open Gear | Lightweight Open Gear | ||
| Пикгард | Midnight Blue, Moonlight Blue: 3Ply Cream / Vintage Sunburst: 3Ply Black / Vintage White: 4Ply Tortoise shell | Midnight Blue, Moonlight Blue: 3Ply Cream / Vintage Sunburst: 3Ply Black / Vintage White: 4Ply Tortoise shell | 3Ply Black | 3Ply Black | Tobacco Brown Sunburst, Ice Blue: 3Ply Black / Teal Blue, Black, Red Metallic: 3Ply Cream | Tobacco Brown Sunburst / 3Ply Black Black / 3Ply Cream | Tobacco Brown Sunburst / 3Ply Black Teal Blue, Black / 3Ply Cream | Vintage White, Yellow Natural Satin / 1Ply Black Black, Raspberry Red / 1Ply White | Vintage White, Yellow Natural Satin / 1Ply Black Black, Raspberry Red / 1Ply White | ||
| Прочее | Калибр струн | D'Addario EXL170 / 0.045-0.100 | D'Addario EXL170-5 / 0.045-0.130 (5 strings) | D'Addario EXL-170/ 0.045-0.100 | D'Addario EXL-170-5 / 0.045-0.130 (5 strings) | D'Addario EXL-170 / 0.045-0.100 | D'Addario EXL-170/0.045-0.100 | D'Addario EXL-170-5 / 0.045-0.130 (5 strings) | 0.045-0.105 | 0.045-0.130 | |
| Футляр | Hardshell case | Hardshell case | Gig bag | Gig bag | - | - | - | - | - | ||
| Особенности | I.R.A Treatment | I.R.A Treatment | - | - | - | - | - | - | - | ||

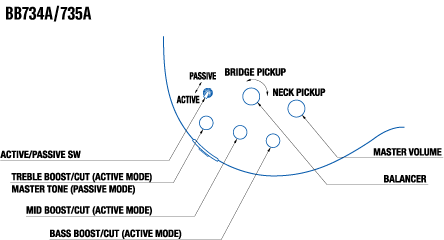

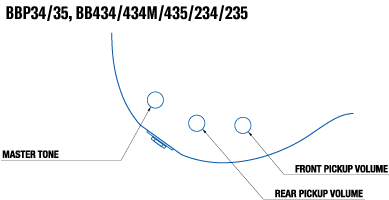

Системы управления
