Dance Schools / Fitness Centers

Простая система PA с микшером с высоким выходом и прочным, легким, легким в установке громкоговорителем, подходящим для воспроизведения музыки в танцевальных школах, фитнес-центрах и т.д., и которые требуют высококачественного звука, несмотря на возможные бюджетные ограничения.

- Simple PA system to liven up dance schools, fitness centers, etc. with a powered mixer and 2x passive speakers.

- High output power 2 x 630W. [Powered Mixer EMX5]

- Durable and lightweight (13.9kg) cabinet with a highly responsive woofer and a precise 2" compression driver ensure consistent high-definition sound. [Loudspeaker CBR12]

- M8 rigging points allow for versatile installation applications. [Loudspeaker CBR12]

Category Model Name Qty
Mixing Console EMX5 1
Power Amplifier - -
Main Speaker CBR12(Loudspeaker) 2
Subwoofer - -
Monitor Speaker - -

System

System

Powerful & High Efficiency Class-D Amplifier

Powerful & High Efficiency Class-D Amplifier

The EMX5 model features a built-in high-efficiency power amplifier of 2 x 630W of output power. Despite the low power consumption, this amp is capable of very high volume output, yet still manages to remain surprisingly lightweight. It also come equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.

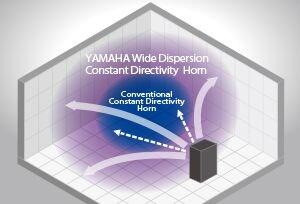

Wide-Dispersion Constant Directivity Horn

Wide-Dispersion Constant Directivity Horn

CBR Series speakers come equipped with a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.

Rigging Points for Installation Applications

Rigging Points for Installation Applications

CBR loudspeakers come equipped with M8 rigging points, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

EMX5

EMX5

Box-type robust and portable powered mixer

630 W + 630 W (4 Ω), 460 W + 460 W (8 Ω) power output

Max. 8 Mic / 12 Line Inputs (8 mono + 4 stereo)

High-Z input (channel 4) to connect guitars or basses directly

1-Knob Master EQ™

Onboard Feedback Suppressor

High-grade effects: SPX with 24 programs

CBR12

CBR12

12" 2-way loudspeaker

Maximum SPL 125dB peak

Durable Plastic enclosure

Compact and lightweight 13.9 kg (30.6 lbs)

Integrated M8 rigging points for suspended applications

Optional Brackets (BBS251, BCS251, BWS215-300, BWS251-400) and Speaker Cover (SPCVR-1201)
