Indoor Stages / Houses of Worship [Small]

A compact and portable PA system with enough power for live band performance on a small outdoor stage for an audience of up to 100 people depending on seating/venue size.

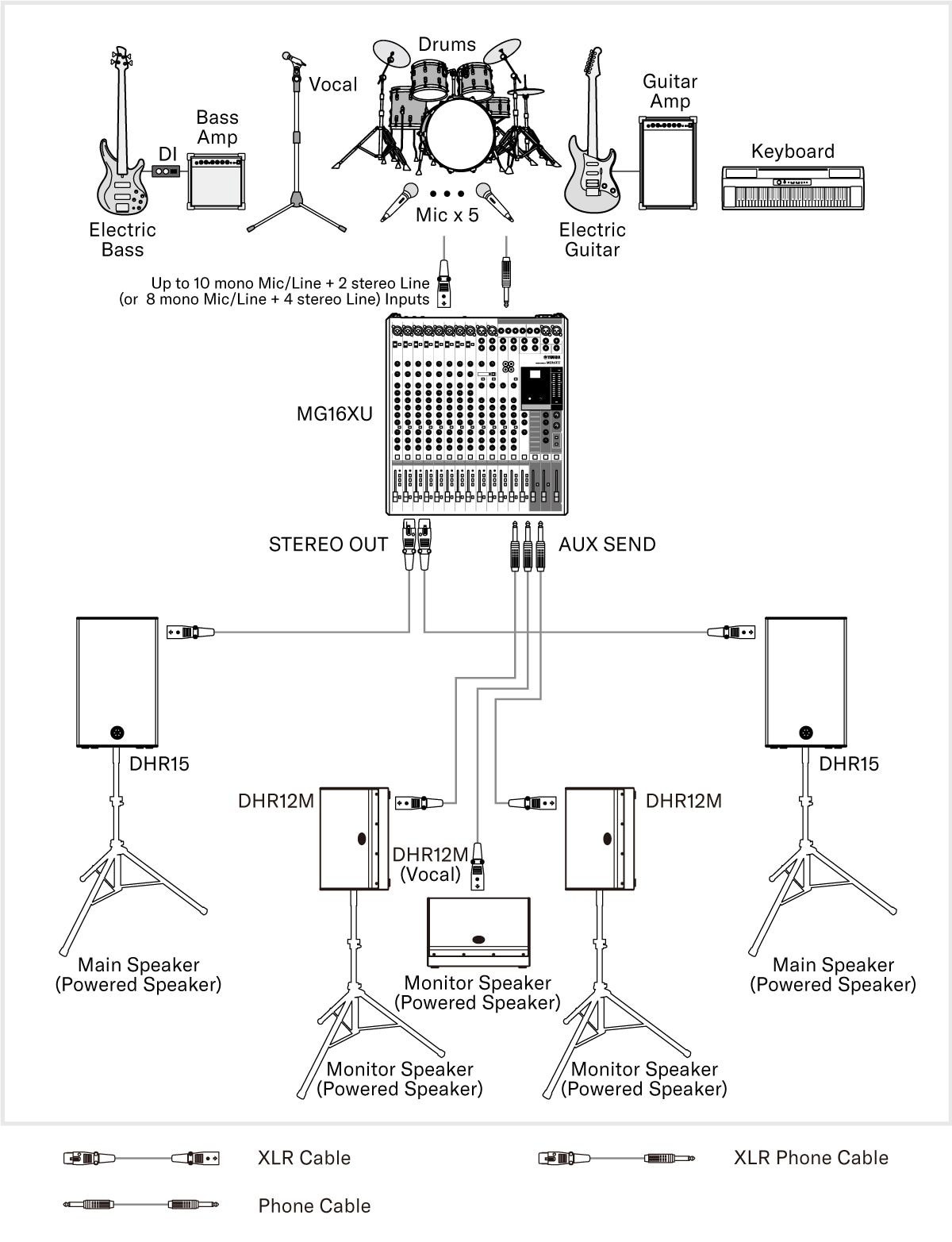

- The system consists of a mixing console, 2x powered speakers, a powered subwoofer for front of house sound, and 2x powered speakers for monitoring.

- High-quality reverb and delay add natural depth and vibrancy to the sound with remarkably natural feel. [Mixing console MG16XU]

- Speaker system features D-CONTOUR intelligent dynamic control feature for consistent clarity at any output level. [Powered loudspeaker DXR12]

- High-output, powerful subwoofers with versatile DSP technologies that ensure clearly defined low frequencies regardless of output power. [Powered subwoofer DXS15]

- Floor monitor speakers are optimized with 50° wedge angle. [Powered loudspeaker DBR12]

Category Model Name Qty
Mixing Console MG16XU 1
Power Amplifier - -
Main Speaker DBR15(Powered Speaker) 2
Subwoofer - -
Monitor Speaker DBR12(Powered Speaker) 3

System

System

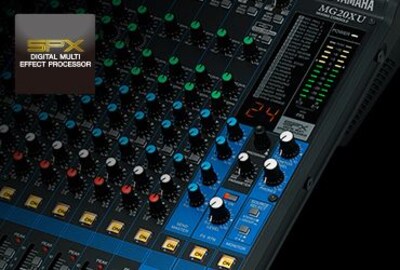

Built-in SPX Digital Effects

Built-in SPX Digital Effects

The MG16XU features Yamaha's acclaimed SPX digital multi-effect processor, offering a comprehensive suite of 24 editable digital effects perfect for enhancing your mix, whether adding depth to a speaking engagement or breathing new color and atmosphere into a live band performance. In particular, the high-quality reverb and delay expand the spatial quality of the sound with remarkable realism and naturalness.

Smart Enclosure Design for Floor Monitoring

Smart Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Highly Portable Enclosure Design

Highly Portable Enclosure Design

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers.

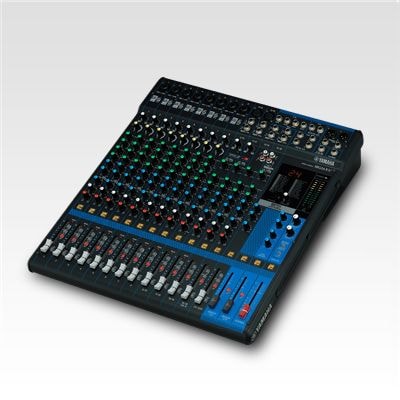

MG16XU

MG16XU

16-Channel Mixing Console

Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)

4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)

1-Knob compressors

High-grade effects: SPX with 24 programs

24-bit/192kHz 2in/2out USB Audio functions

Rack Mount Kit included

MG REC/PLAY, Cubase AI and Cubasis LE available

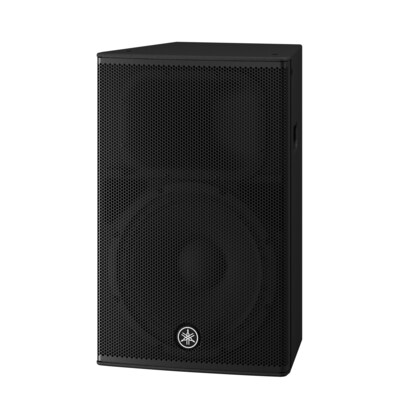

DBR15

DBR15

15" 2-way powered loudspeaker

1000W Class-D amplifiers

Maximum 132dB SPL (peak)

D-CONTOUR multi band dynamic processor

Easy-to-use Onboard 2-Channel Mixer

Compact and lightweight (19.3kg / 42.6lbs) with durable Plastic enchosures

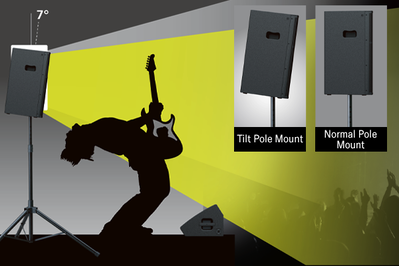

Floor monitor angle

35mm Pole Mount Socket

Integrated M8 rigging points for suspended applications

Optional Brackets (BBS251, BCS251, BWS215-300, BWS251-400) and Speaker Cover (SPCVR-1501)

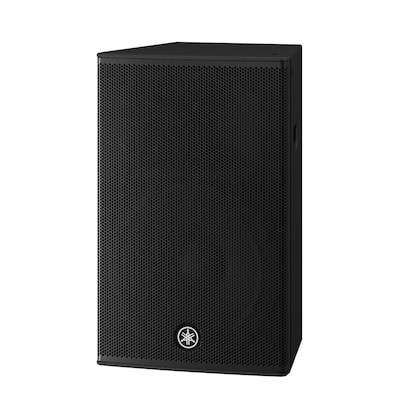

DBR12

DBR12

12" 2-way powered loudspeaker

1000W Class-D amplifiers

Maximum 131dB SPL (peak)

D-CONTOUR multi band dynamic processor

Easy-to-use Onboard 2-Channel Mixer

Compact and lightweight (15.8kg / 34.8lbs) with durable Plastic enchosures

Floor monitor angle

35mm Pole Mount Socket

Integrated M8 rigging points for suspended applications

Optional Brackets (BBS251, BCS251, BWS215-300, BWS251-400) and Speaker Cover (SPCVR-1201)
